SPECIFICATION

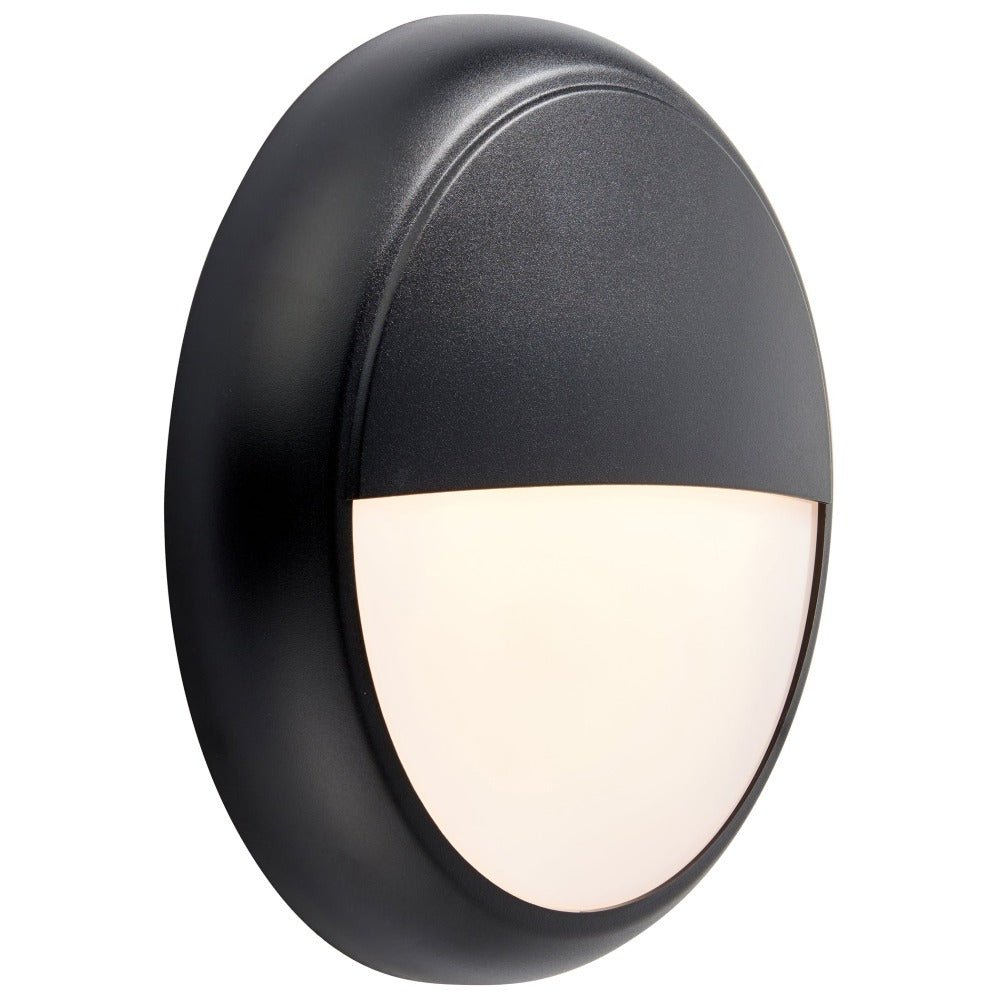

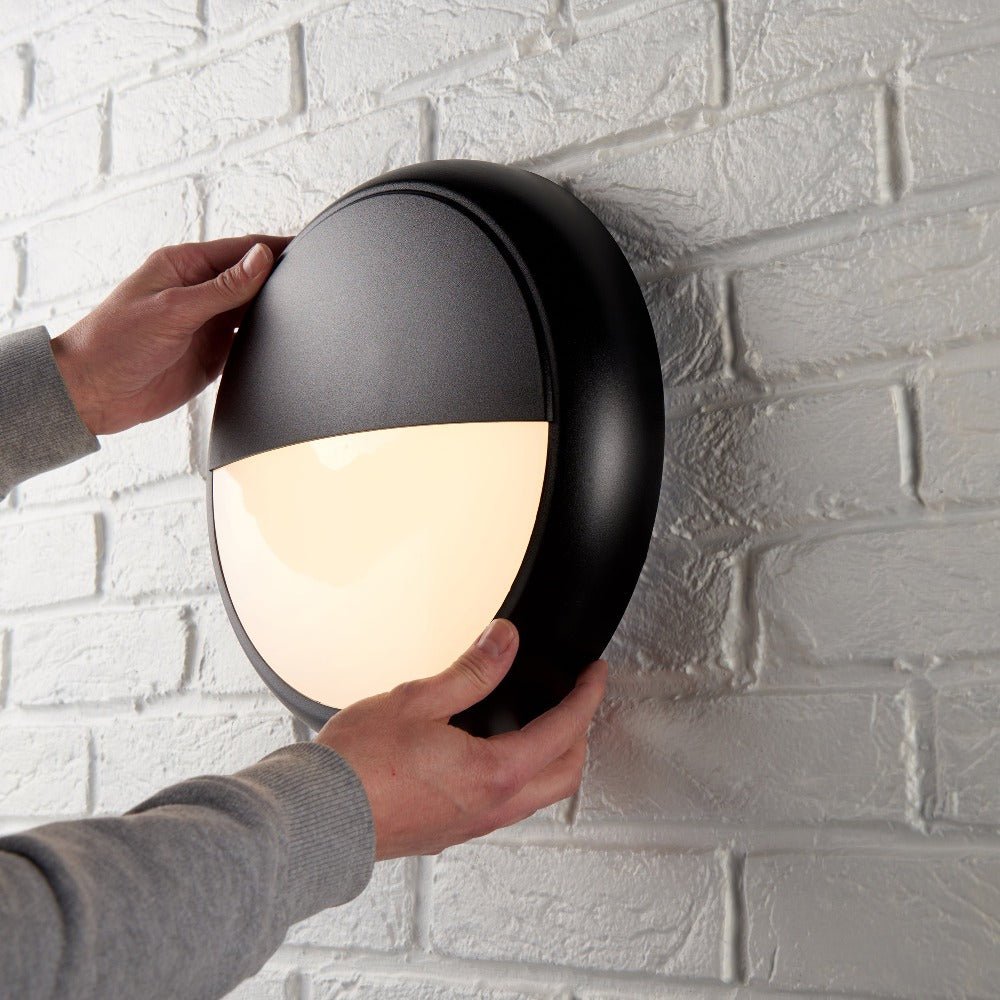

BUNDLE PRODUCT : BHMWEM3X3-CCT Bulkhead + Decorative Black Eyelid Trim
ACTON CCT LED Black 3hr emergency microwave motion sensor eyelid bulkhead light fittings are ideal for communal hallways, stairs, corridors, bathrooms, HMO or other indoor spaces, whether ceiling or wall mounted.
Average Life | 35,000 hrs |
Bathroom Zones | Zones 1 & 2 |
Beam Angle | 120° |
Bezel Colour | Black (Please note: Trim will come separate in box) |
Body Colour | White |
Body Material | Polycarbonate |
Box Contents | Bulkhead Fitting, Black Eyelid Trim, Instructions & Fixings |
Brand | LightHub |
Cable Entry | Rear 20mm Cable Entry |
Cap Type | Integrated LED |
Colour Rendering Index (CRI) | >=80 |
Colour Temperature Description | CCT Tri-Colour Switchable |
Colour Temperature Value | 3000K, 4000K & 6000K |
Conduit Knockouts | None |
Dimmable | Non-Dimmable |
Domestic/Commercial Use | Commercial, Semi-Commercial & Domestic |
Earth Protection | Class II |
Emergency (Yes/No) | Yes |
Emergency Battery Life | >3 hours |
Emergency Battery Type | LiFePO4 (Replaceable) |
Emergency Lighting Maintained | Maintained / Non-Maintained |
Emergency Voltage | 3.2V 1500mAh |
Emergency Wattage | 2.0W |
Energy Rating | F |
Fire Rated (Yes/No) | No |
Fitting Installation | Ceiling / Wall |
Fixings Supplied | Yes |
IK Rating (Impact Protection) | IK10 |
Indoor/Outdoor Usage | Indoor or Outdoor |
Installation Options | Basement, Car Parks, Communal, Entrances, Toilets, Corridors, Pathways, Stairwells, Utility and Exterior Areas |
IP Rating | IP65 |
kWh Per 1000hr Life | 9, 14 or 18 |
Diffuser Colour | Frosted |
Diffuser Material | Polycarbonate |
Light Technology | LED SMD 2835 |
Light Bulb(s) Supplied | Integrated LED |
Luminous Flux | 900 lm - 1800 lm |
Luminous Flux (Emergency Mode) | 300 lm |
Lumens per watt | 100.00 lm/W |
Manufacturer Guarantee | 3 Years (Fitting), 2 Years (Battery) |
Model Range | ACTON CCT |
Model No | BHMWEM3X3-CT-EYBLK |
Operating Temp (°C) | -20 to 45 °C |
Pack Size | 1 Unit |
Power Input | Mains (Hardwired) |
Power Factor Value | 0.9 |
Product Diameter | 316mm |
Product Dimenions (H x W x D) | Depth: 74mm |
Product Type | Emergency LED Bulkhead |
Product Weight | 1.21 kg |
Sensor Angle | 150° Wall Installation |
Sensor Delay (Time) | 5s / 30s / 90s / 3min / 20min / 30min |
Sensor Lux | 2Lux / 10Lux / 25Lux / 50Lux / Disable |
Sensor Rated Load | 400W (Capacitive load) 800W (Resistive load) |
Sensor Range | Wall Height 1.5-2m: 12-15m |
Sensor Type | Microwave |
Shape | Round |
Smart Compatibility | No |
Transformer | Internal Driver |
UKCA & CE Compliant | Yes (Conformity Certificate Available) |
Voltage | 220-240V |
Voltage Supply | AC 50/60Hz |
Wattage | Switchable - 9.0W / 14.0W / 18.0W |
