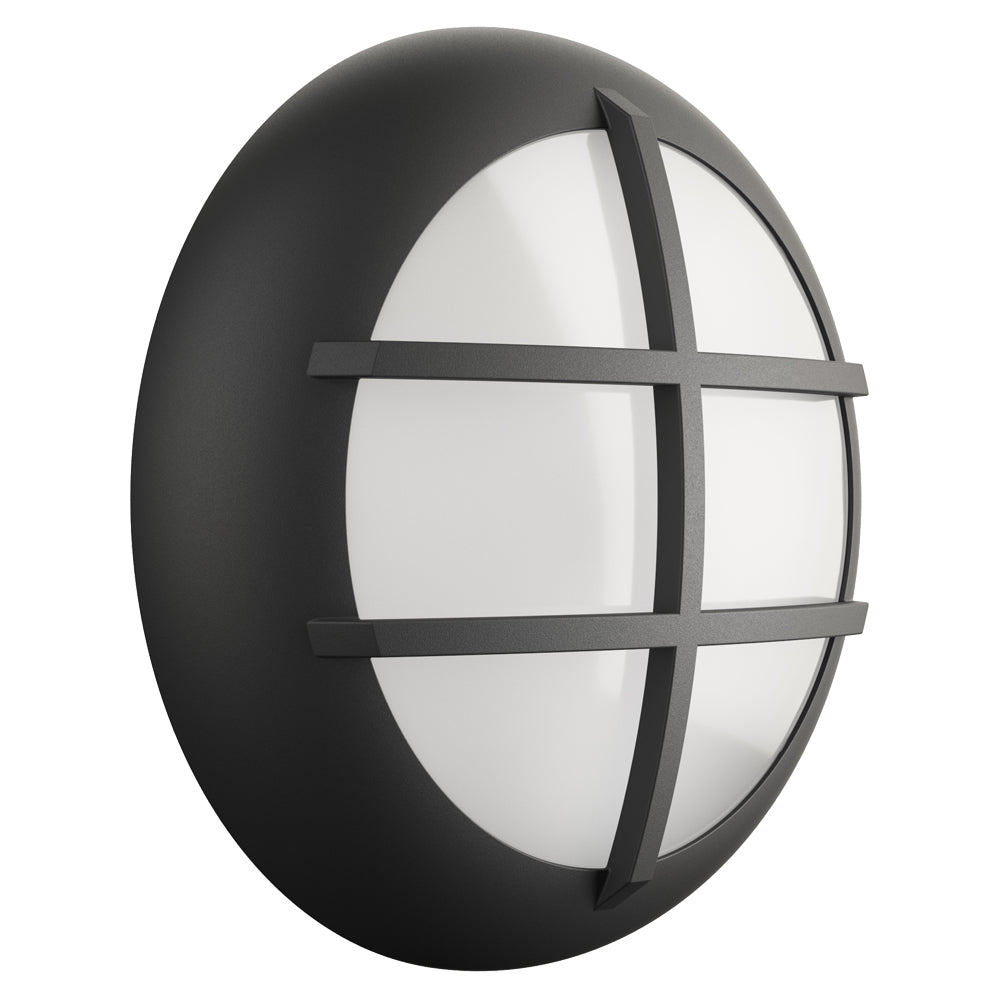

BUNDLE PRODUCT : BHEM18-CCT Bulkhead + Decorative Black Cage Trim

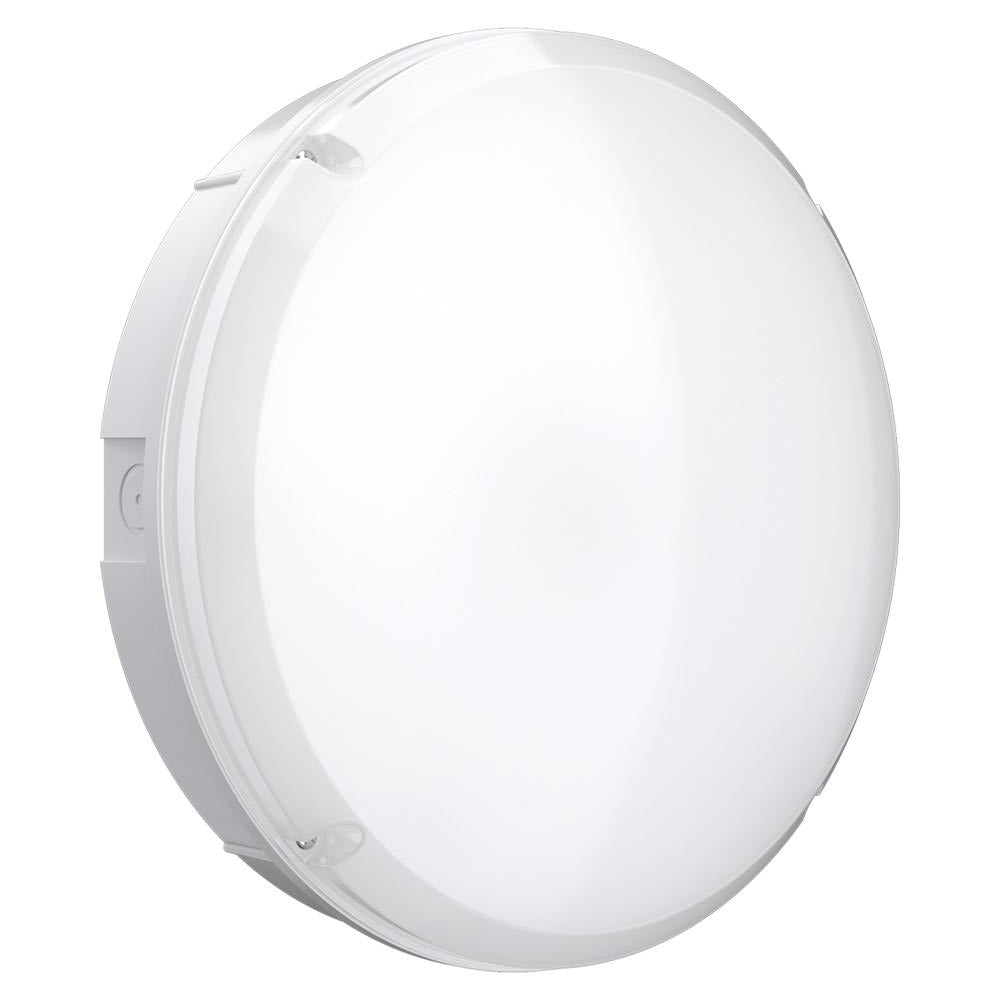

The BALHAM 18W LED drum style bulkhead with emergency function complies with regulations BS 5266 and BS EN 1838:2013 for emergency lighting in commercial, public and accommodation premises.
Downloadable Product Files
| Average Life | 35,000 hrs |
| Beam Angle | 110º |
| Bezel Colour | Black |
| Body Colour | White |
| Body Material | Polycarbonate |
| Box Contents | Fitting, Cage Trim & Fixings |
| Brand | LightHub |
| Cable Entry | Rear 20mm Cable Entry & 4 x 20mm Side Entry |
| Cap Type | Integrated LED |
| Colour Rendering Index (CRI) | >=80 |
| Colour Temperature Description | Warm White, Neutral White or Cool White |
| Colour Temperature Value | 3000K, 4200K & 6500K |
| Conduit Knockouts | 4 x 20mm Side Conduit Knockouts |
| Dimmable | Non-Dimmable |
| Domestic/Commercial Use | Commercial, Semi-Commercial & Domestic |
| Earth Protection | Class II (No Earth) |
| Emergency (Yes/No) | Yes |
| Emergency Battery Life | >3 hours |
| Emergency Battery Type | LiFePO4 (Replaceable) |
| Emergency Lighting Maintained | Maintained or Non-Maintained |
| Emergency Voltage | 3.2V 1500mAh |
| Emergency Wattage | 2.0W |
| Energy Rating | G |
| Fire Rated (Yes/No) | No |
| Fitting Installation | Ceiling / Wall |
| Fixings Supplied | Yes |
| IK Rating (Impact Protection) | IK08 |
| Indoor/Outdoor Usage | Indoor & Outdoor |
| Installation Options | Basement, Car Parks, Communal, Entrances, Toilets, Corridors, Pathways, Stairwells, Utility and Exterior Areas |
| IP Rating | IP65 |
| kWh Per 1000hr Life | 18 |
| Diffuser Colour | Opaque |
| Diffuser Material | Polycarbonate |
| Light Technology | LED SMD 2835 |
| Light Bulb(s) Supplied | Integrated LED |
| Luminous Flux | 1600 lm |
| Luminous Flux (Emergency Mode) | 120 lm |
| Lumens per watt | 88.8 lm/W |
| Manufacturer Guarantee | 3 Years (Fitting), 2 Years (Battery) |
| Model Range | BALHAM |
| Model No | BHEM18-CCT-CGBLK |
| Operating Temp (°C) | -20 to 45 °C |
| Pack Size | 1 Unit |
| Power Input | Mains (Hardwired) |
| Power Factor Value | 0.9 |
| Product Diameter | 340mm |
| Product Dimenions (H x W x D) | Depth: 90mm |
| Product Type | LED Emergency Bulkhead |
| Product Weight | 1.1kg |
| Shape | Round |
| Smart Compatibility | No |
| Transformer | Internal Driver |
| UKCA & CE Compliant | Yes (Conformity Certificate Available) |
| Voltage | 220-240 |
| Voltage Supply | AC 50/60Hz |
| Wattage | 18.0W |
