Free next working day delivery on orders over £25. Fast, hassle-free shipping!SPECIFICATION

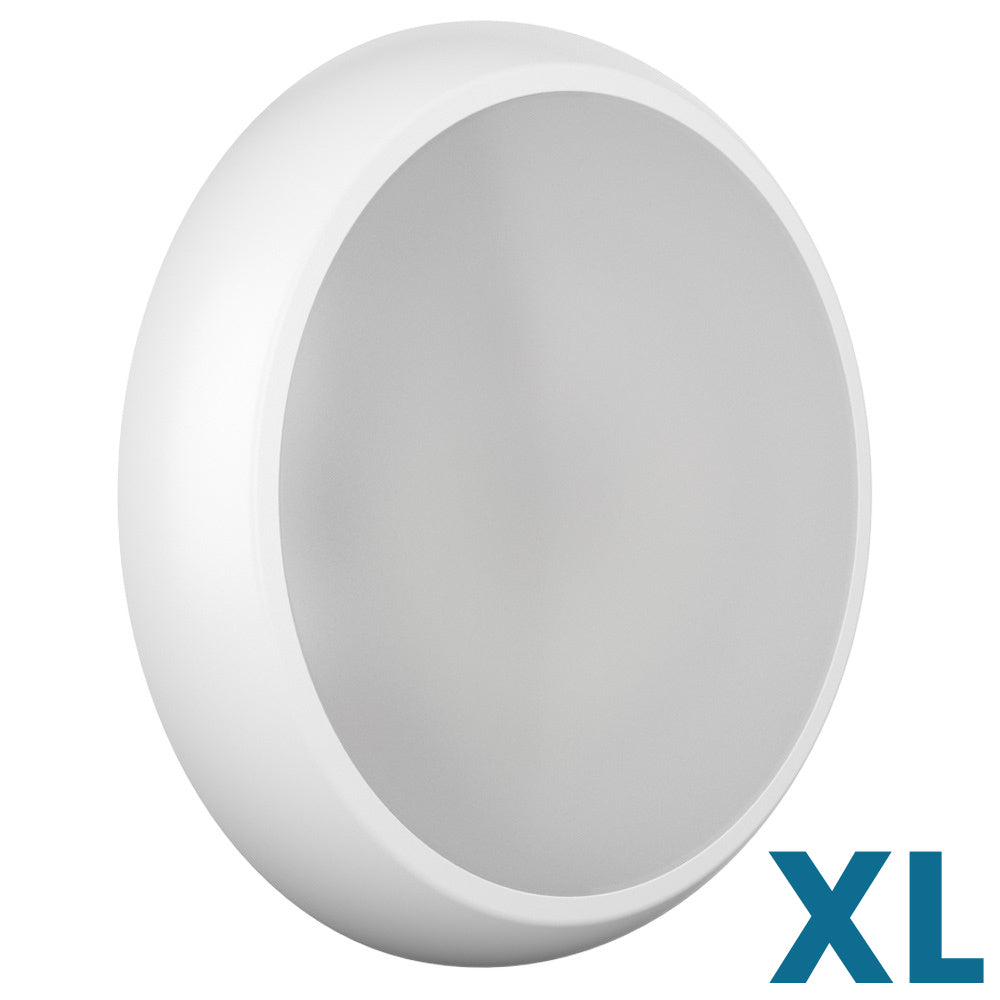

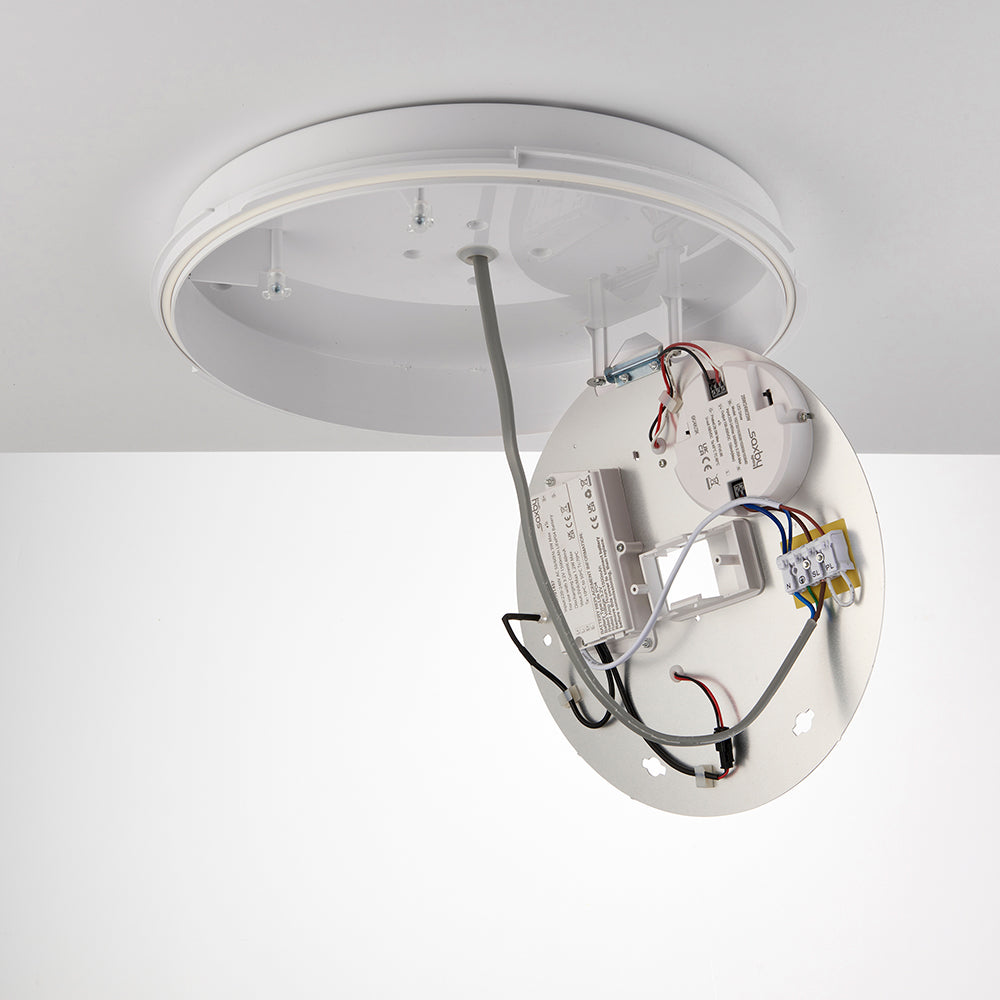

The ACTON XL Emergency LED is Large 400mm bulkhead allows you to choose which wattage and colour temperature you want from a switch inside the light fitting. Offering you an option of 20W, 24W or 28W and 3000K, 4000K or 6000K.
| Average Life | 50,000 hrs |
| Bathroom Zones | Zone 1 & 2 |
| Beam Angle | 120° |
| Bezel Colour | White |
| Body Colour | White |
| Body Material | Polycarbonate |
| Box Contents | Fitting, Fixings & Instructions |
| Brand | LightHub |

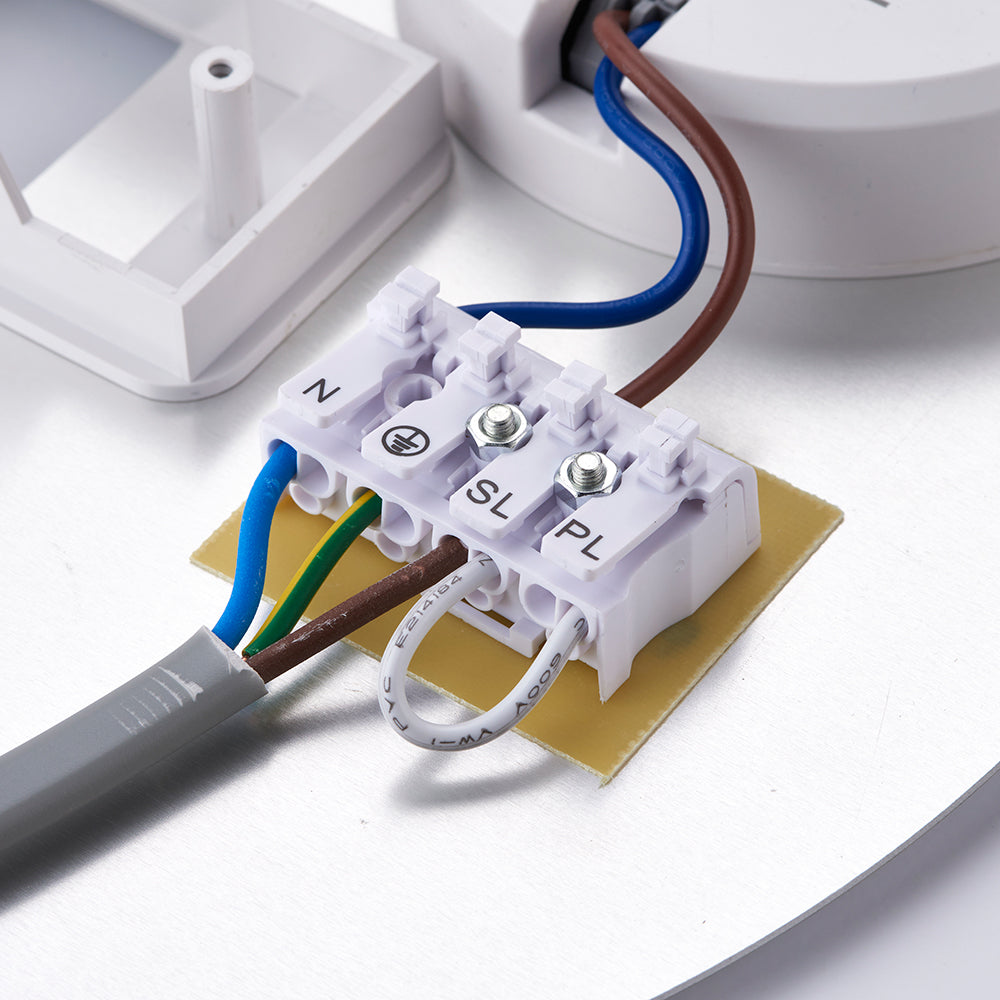

| Cable Entry | Rear 20mm Cable Entry |
| Cap Type | Integrated LED |
| Colour Rendering Index (CRI) | >=80 |
| Colour Temperature Description | CCT Tri-Colour Switchable |
| Colour Temperature Value | 3000K, 4000K & 6000K |
| Conduit Knockouts | None |
| Dimmable | Non-Dimmable |
| Domestic/Commercial Use | Commercial, Semi-Commercial & Domestic |
| Earth Protection | Class II |
| Emergency (Yes/No) | Yes |
| Emergency Battery Life | >3 Hours |
| Emergency Battery Type | LiFePO4 (Replaceable) |
| Emergency Lighting Maintained | Maintained or Non-Maintained |
| Emergency Voltage | 3.2V 1500mAh |
| Emergency Wattage | 2.0W |
| Fire Rated (Yes/No) | No |
| Fitting Installation | Ceiling or Wall |
| Fixings Supplied | Yes |
| IK Rating (Impact Protection) | IK08 |
| Indoor/Outdoor Usage | Indoor or Outdoor |

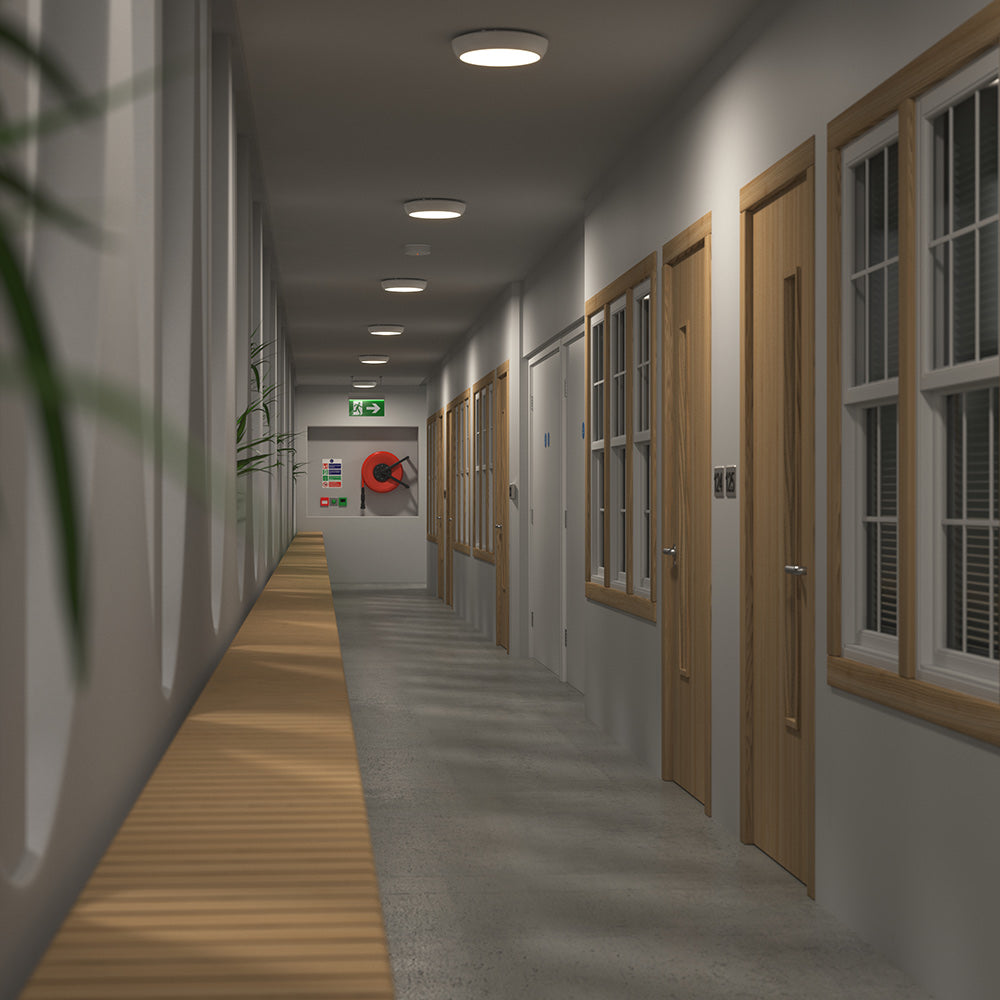

| Installation Options | Bathrooms & Toilets / Basement / Corridors / Garages / Hotels & B&Bs / Offices / Outdoor Walls / Public Rooms / Receptions / Retail / Restaurants / Shops / Stairwells / Walkways |
| IP Rating | IP65 |
| kWh Per 1000hr Life | 20, 24 or 28W |
| Diffuser Colour | Frosted |
| Diffuser Material | Polycarbonate |

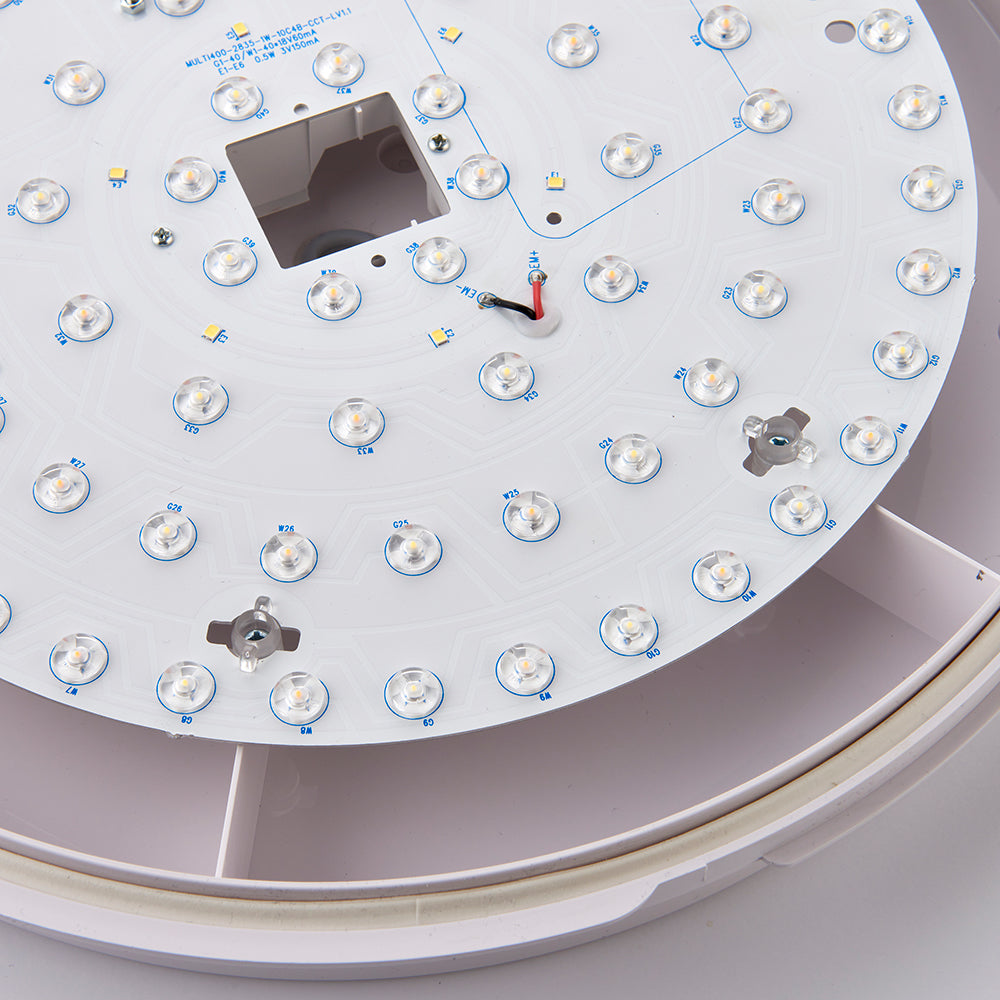

| Light Technology | LED SMD 2835 |
| Light Bulb(s) Supplied | Integrated LED |
| Luminous Flux | 2000 lm - 2800 lm |
| Lumens per watt | 100.00 lm/W |
| Manufacturer Guarantee | 5 Years (Based on working temperature 0 - 45º) |
| Model Range | ACTON XL CCT |
| Model No | BHEM3X3XL-CT |
| Operating Temp (°C) | -20 to 40 °C |
| Pack Size | 1 Unit |
| Power Input | Mains (Hardwired) |
| Power Factor Value | 0.9 |
| Product Diameter | 400mm |

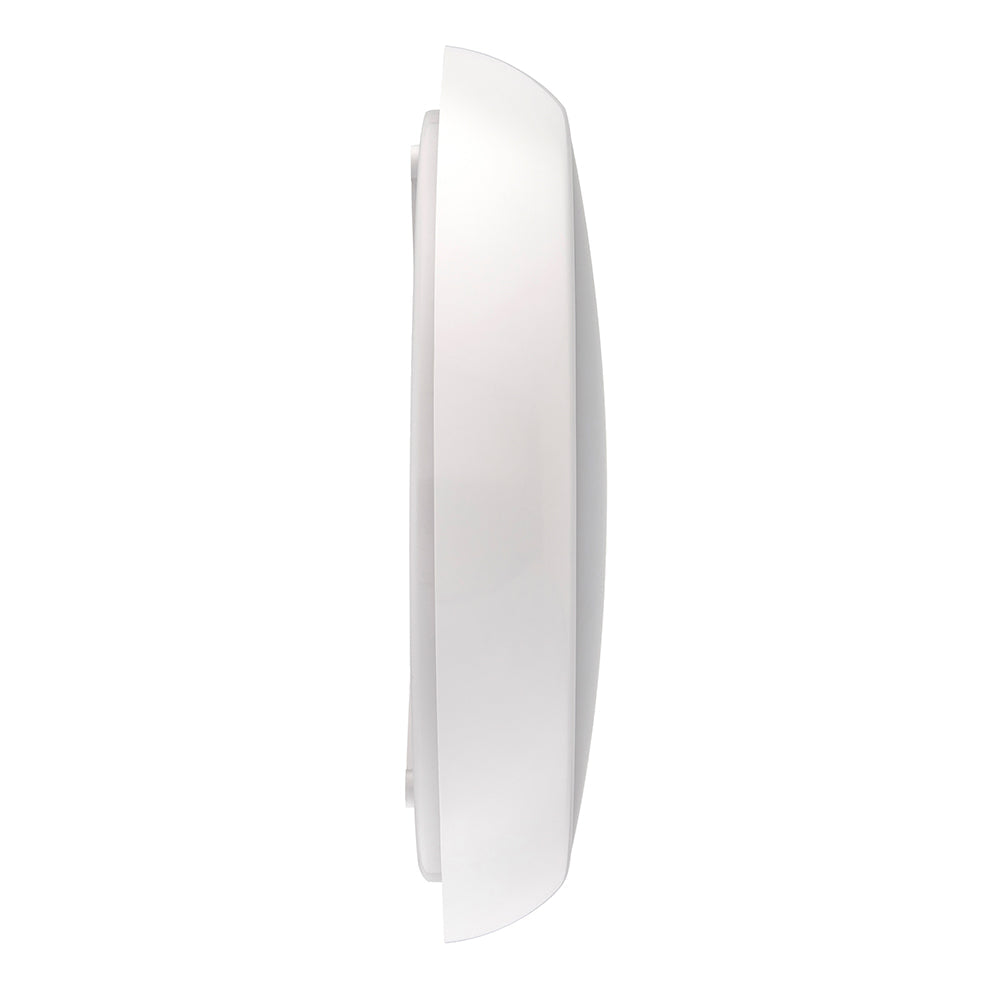

| Product Dimenions (H x W x D) | Depth: 85mm |
| Product Type | LED Bulkhead |
| Product Weight | 1.55 kg |
| Shape | Round |
| Smart Compatibility | No |
| Transformer | Internal Driver |
| UKCA & CE Compliant | Yes (Conformity Certificate Available) |
| Voltage | 220-240V |
| Voltage Supply | AC 50/60Hz |
| Wattage | Switchable - 20.0W / 24.0W / 28.0W |
